Utility Track Loader SM100

SM100

Find a Dealer

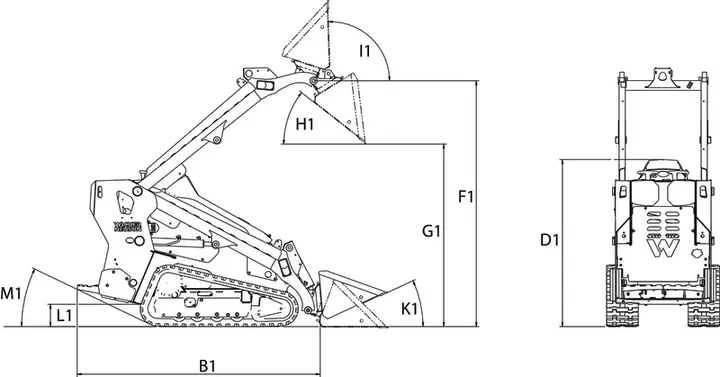

B1	Overall length without bucket	2,153.6 mm
D1	Overall height	1,478 mm
F1	Hinge pin height	2,175 mm
G1	Dump height max.	1,615.1 mm
H1	Dump angle	38.2 °
I1	Bucket rollback at max. stroke height	92 °
K1	Bucket rollback at ground level	25 °
L1	Ground clearance	196.9 mm
M1	Angle of departure	25.6 °

Please note that the product range may vary depending on the country. Under certain circumstances, the contents / products shown here may not be available in your country. The illustrations, equipment, and data shown may also differ from the current product range in your country. Optional extras may be shown that are subject to an additional charge. Subject to changes.
The engines shown may differ from the current delivery range in your country. Special equipment is depicted here that may be subject to extra charge. Subject to change without notice.
